gibson355
 Post subject:
PostPosted: Tue Oct 10, 2006 5:43 am
Offline
Mahogany
Mahogany

Joined: Wed Sep 07, 2005 7:34 am
Posts: 51
Location: Canada

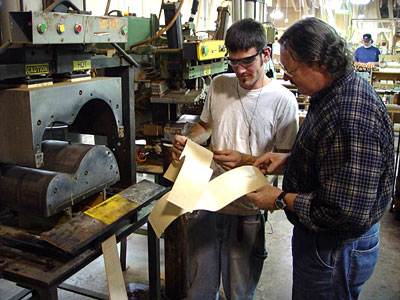

How's this for a bending jig? Gibson Montana....



Cheers,

Richard
Top
 Profile

peterm
 Post subject:
PostPosted: Tue Oct 10, 2006 6:48 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Thu Oct 06, 2005 1:05 pm
Posts: 3350
Location: Bakersville, NC
Focus: Build
Status: Professional
I wonder if they make one of those for necks?

_________________
Peter M.
Cornerstone Guitars
http://www.cornerstoneukes.com
Top
 Profile

burbank
 Post subject:
PostPosted: Tue Oct 10, 2006 7:29 am
Offline
Koa
Koa
User avatar

Joined: Mon Sep 12, 2005 12:40 am
Posts: 1900
Location: Spokane, Washington
First name: Pat
Last Name: Foster
State: Eastern WA
Focus: Build
woa! Looks like you could make Model T fenders with that thing!

_________________
now known around here as Pat Foster
_________________
http://www.patfosterguitars.com
Top
 Profile

Serge Poirier
 Post subject:
PostPosted: Tue Oct 10, 2006 7:32 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Sun Dec 25, 2005 6:32 am
Posts: 7774
Location: Canada
Really cool, i'd love to see some dough coming out of there as well!


Top
 Profile

phil c-e
 Post subject:
PostPosted: Tue Oct 10, 2006 12:19 pm
Offline
Cocobolo
Cocobolo

Joined: Thu Aug 03, 2006 12:44 pm
Posts: 110
Location: Canada
half of me admires that machine and half of me feels like i'm looking at two guys in front of the french fry machine at mcdonalds. "so i put the wood in and press this green button over here and, tada, out comes a perfect guitar side."


Top
 Profile

npalen
 Post subject:
PostPosted: Tue Oct 10, 2006 2:11 pm
Offline
Koa
Koa
User avatar

Joined: Sat Jan 08, 2005 4:19 am
Posts: 1534
Location: United States
First name: Nelson
Last Name: Palen
Richard
I'm trying to figure out how the heat is applied to the wood before bending. I assume the upper and lower blocks have embedded heating elements but doesn't look like that would do it.

Nelson


Top
 Profile

MSpencer
 Post subject:
PostPosted: Tue Oct 10, 2006 2:32 pm
Offline
Koa
Koa

Joined: Sat Feb 11, 2006 10:40 am
Posts: 1286
Location: United States
Nelson, I was trying to figure out the same. If the slat is placed in flat and the mold brought down you would have some pretty significant clearance between the wood and the heat source in open air.

Mike
Top
 Profile

mikev
 Post subject:
PostPosted: Tue Oct 10, 2006 2:42 pm
Offline
Cocobolo
Cocobolo

Joined: Tue Jan 03, 2006 4:17 am
Posts: 338
Location: United States
Nelson, wouldn't that be the same concept as a fox bender with lamps, except it also would have top heat. If I post this link correctly it will take you to a video from taylor guitars on their bending process. it is two videos, zero operator interrvention, but very cool.. Check out the other vids also...
taylor bending video 1, oh yeh they run like 15 minutes ech, so grab a beer or bourbon, your call.
Mike
Top
 Profile

Anthony Z
 Post subject:
PostPosted: Tue Oct 10, 2006 2:58 pm
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Mon Jun 13, 2005 6:53 am
Posts: 2104
Location: Toronto, Ontario, Canada
First name: Anthony
Last Name: Zlahtic
City: Toronto
Country: Canada
Focus: Build
Status: Amateur
Nelson I saw a similar contraption when I toured the Gibson plant when they were still in Kalamazoo, MI. (circa 1977) Both the male and female part of the molds are heated. The wood was brought to temperature in a hot liquid bath, then quickly inserted into the mold and shazam. The one I saw even had a trimmer that cut the ribs to length after they were bent.

Mike -- thanks for the link.
Top
 Profile

Rod True
 Post subject:
PostPosted: Tue Oct 10, 2006 3:26 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
When I went to Larrivee back in 93' they steamed the sides first and than into something also similar, bent like butta'

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson
